Batterie Lithium 15kwh 48v280ah Lithium Battery

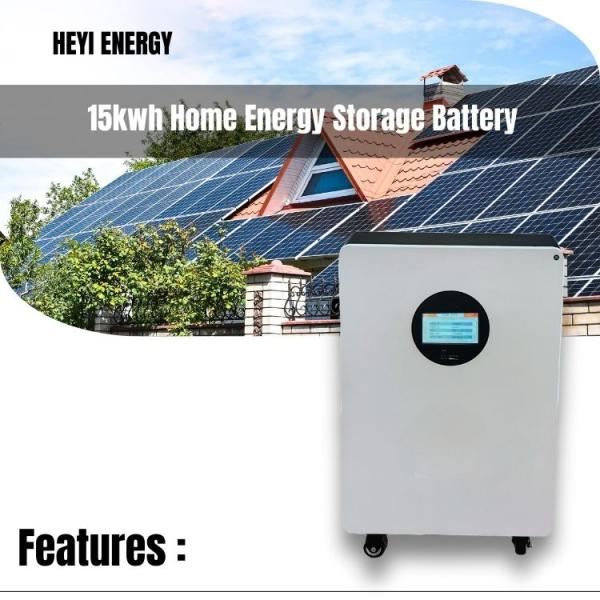

Designed for residential, office, and light commercial applications, this 15kWh energy storage system features a vertical, freestanding structure with built-in wheels for effortless mobility and installation.
- Vertical, Wheeled Structure
Built in a standing form with caster wheels for smooth relocation—great for homes, studios, and small offices. - Grade A LiFePO₄ Cells Inside
Uses top-quality lithium iron phosphate batteries, offering strong safety performance and resistance to overheating. - Long-Term Power Solution
Up to 8000 charging cycles, supporting more than 10 years of everyday usage without performance degradation. - Smart Protection System
The intelligent BMS defends against battery stress like overcharging, over-discharging, and temperature swings. - Compact & Powerful
More energy stored in less space—boosts efficiency while simplifying installation. - Fast Energy Flow
Delivers and accepts high current for quick charging and stable output during high-load usage. - Modular Growth-Ready
Need more power? Easily expand by linking up to 16 units together. - Remote Monitoring Options
Equipped with RS485/CAN and optional Bluetooth/Wi-Fi for remote tracking and diagnostics. - Built for Extreme Conditions
Operates safely from icy -20°C to scorching 60°C, perfect for a wide range of climates. - Zero-Maintenance Design
Sealed construction means no upkeep—plug in and enjoy uninterrupted energy. -
SPECIFICATIONS :
| Model | HY15KWH |
| Energy | 14336WH |
| Nominal Voltage (V) | 51.2V |
| Rated Capacity (Ah) | 280Ah |
| Chemistry | Lithium iron phosphate (LiFePo4) |
| Design Life | More than 10 years |
| Cycle Life | More than 8000 cycles at 80% DOD. |
| Communication Protocol | CAN , RS485 |
| Display | LED Display |
| Scalable(Parallel Function) | Yes, Maximum 16 Packs |
| Max. Charging Current | 100A |
| Max. Continue Discharging Current | 100A |
| Battery Dimensions (MM) | 850*570*435mm |
| Weight | Approx: 115kg |
| Battery Protection | Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance |
| Outer Package Material | Power Coated steel case IP60 |
| Operating Temperature | Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃ |

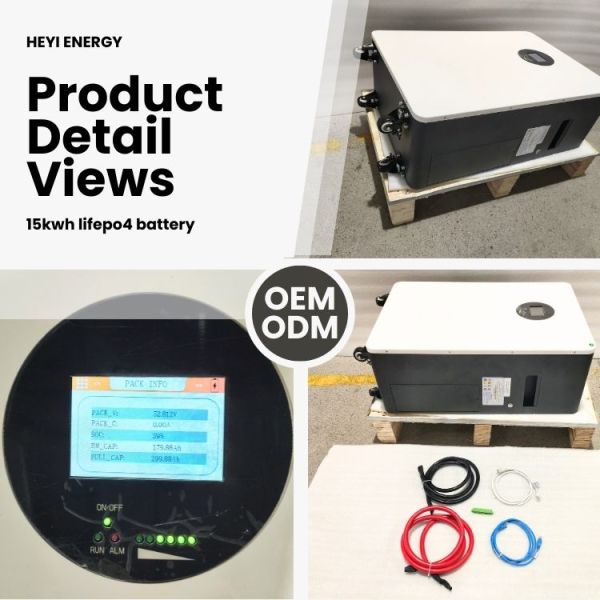

Looking for a safe, long-lasting, and cost-efficient energy storage solution? Our 15kWh lithium iron phosphate (LiFePO₄) battery is engineered for residential and small commercial power systems. It features a built-in LCD display that clearly shows key metrics such as real-time voltage, current, charge level, energy output, and operating status—allowing users to manage and monitor their system with ease.
This high-performance battery integrates a smart battery management system (BMS) designed to prevent overcharging, deep discharging, overcurrent, overheating, and short circuits—ensuring reliable protection and consistent performance across a wide range of operating conditions.
Thanks to built-in RS485 and CAN communication protocols, the battery is fully compatible with many industry-leading solar inverters, hybrid systems, and MPPT solar charge controllers. It works seamlessly with popular off-grid and grid-tied setups.
Modular by design, our lithium storage units offer capacity options from 5kWh to 160kWh, supporting parallel expansion as your power needs grow. Whether you're upgrading an existing solar system or starting from scratch, this energy storage solution offers exceptional scalability and future-ready performance.
Packaging & Shipping
We can arrange Door to Door delivery service for small orders or samples .
